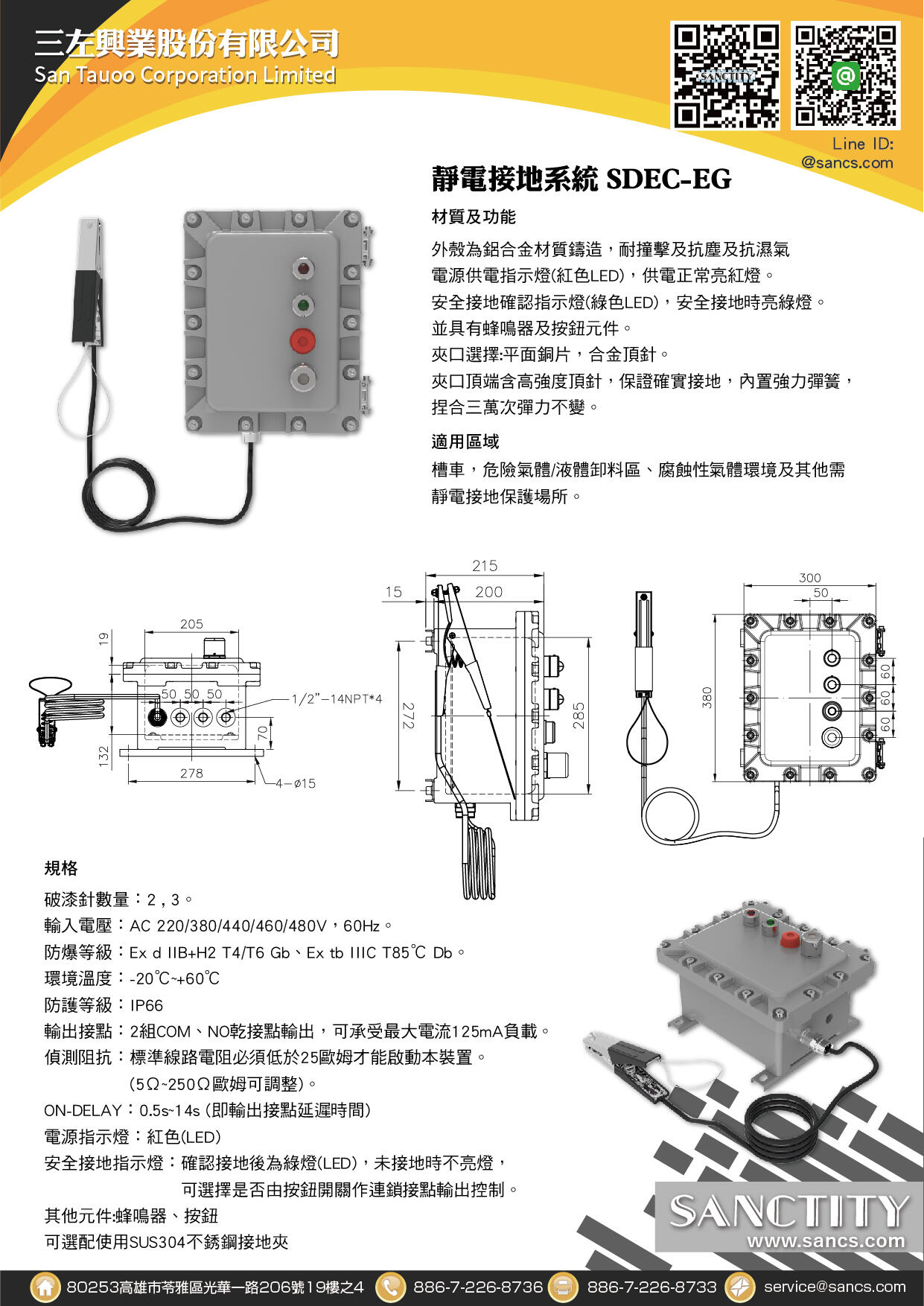

Ex d electrostatic grounding system-50
Ex d,SDEC-50,L380xW300xH200,Ex d IIB+H2 T4/T6 Gb,Ex tb IIIC T85℃ Db
Explosion-proof mark | |
| Explosion Proof Mark | EX |
| Gas Explosion-proof Type | d |
| Dust Explosion-proof Type | tD(ta,tb,tc) tb |
| Gas Hazardous Location Group | IIB |
| Dust Hazardous Location Group | IIIC |
| Special Gas Marking | H2 |
| ambient temperature Classes for Gas | T4 /T6(Non-draining respirator) |
| ambient temperature Classes for Dust | T85℃ |
| EPL: Equipment Protection Level-Gas | Gb |
| EPL: Equipment Protection Level-Dust | Db |
| IP Enclosure Ratings | IP66 |
Product specifications | |
| Body Size | Long(L) 380 Width(W) 300 High(H) 200 |
| Electric Current | AC220/380/440/460/480V |
| Voltage | 60 |
| Rated Current | 150 |
| Operating Temperature | -20~+60 |
| Fixed Way | Wall-mounted |
| Weight | 19kg |
| Dimensions(mm) | L(Icon A) 380 W(Icon B) 300 H(Icon C) 200 |
| Internal Dimensions(mm) | L(Icon D) 285 W(Icon E) 205 H(Icon F) 132 |
| Installation Size(mm) | (OUT)(Icon G) 272 (IN)(Icon H) 278 Ø(Icon J) 15 |
| Screws Quantity | 2/3 |
| Phase Angle | Three phase AC220/380/440/460/480V |
| Model code | 50 |
| Component Quantity | 2/3/4 |
| Product source | Made in Taiwan |
Description:
Recommend
Static Grounding Reel - Medium
Flat copper sheet, alloy thimble. The top end contains high strength and gold thimbles, ensuring true grounding, built-in strong springs, and kneading 30,000 times of spring force
Applicable areas: tank trucks, hazardous gas/liquid discharge areas, corrosive gas environments, and other places that require electrostatic grounding protection.
Static Grounding Reel - Large
Flat copper sheet, alloy thimble. The top end contains high strength and gold thimbles, ensuring true grounding, built-in strong springs, and kneading 30,000 times of spring force
Applicable areas: tank trucks, hazardous gas/liquid discharge areas, corrosive gas environments, and other places that require electrostatic grounding protection.
Static Grounding Reel - Small
Flat copper sheet, alloy thimble. The top end contains high strength and gold thimbles, ensuring true grounding, built-in strong springs, and kneading 30,000 times of spring force
Applicable areas: tank trucks, hazardous gas/liquid discharge areas, corrosive gas environments, and other places that require electrostatic grounding protection.
Static Grounding Reel - Ground Reel
Flat copper sheet, alloy thimble. The top end contains high strength and gold thimbles, ensuring true grounding, built-in strong springs, and kneading 30,000 times of spring force
Applicable areas: tank trucks, hazardous gas/liquid discharge areas, corrosive gas environments, and other places that require electrostatic grounding protection.
